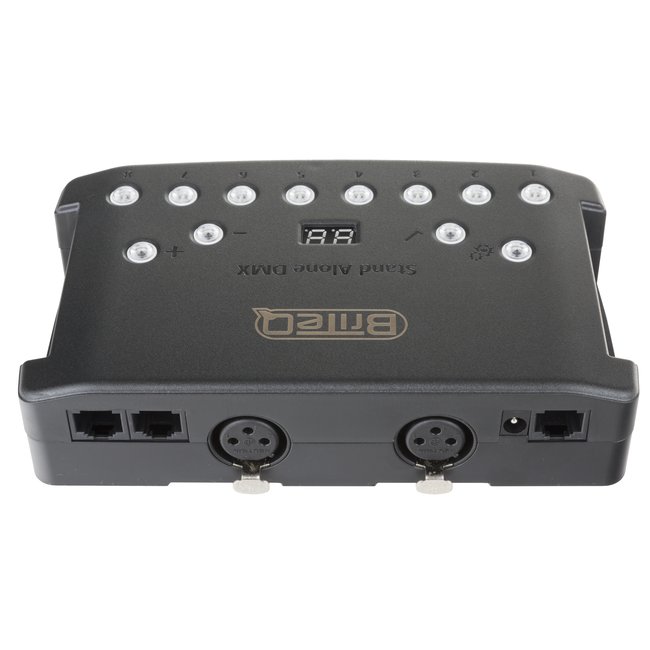

BRITEQ LD-1024EASY NET

1024 Channel DMX interface with ETHERNET port for Local Area Network (LAN, WLAN)

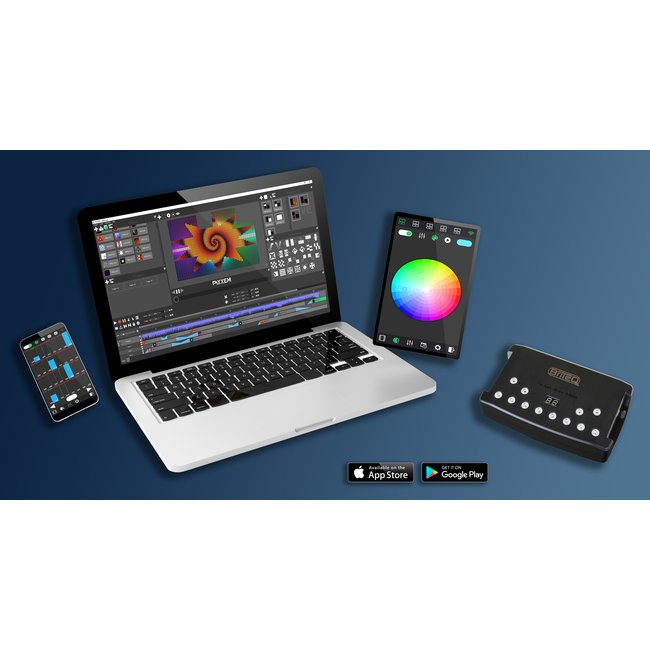

Can be used with the Wi-Light APP from a mobile device (Android + iOS) : Video 'Wi-Light 2 APP'

1024 output channels when used with a computer

Multizone 1024 output channels when used standalone without computer (max 6000 steps and 512 scenes max when 512 channels are used)

4Mb internal memory and external SD Card reader (extended memory for all type of Micro SD card)

16 bits channels management in standalone

RS232 triggers for standaloneDMX

input trigger standalone

30 minutes of Lighting, Audio and Video timeline synchronization with Pro DMX software

Integrated DMX splitter (2 outputs)

Works with the Chromateq Led Player and Chromateq Pro DMX software. (included)

Functions and control in standalone mode:

Automatic Real Time Clock triggering for different scenes (day, week, month, year)

External Triggering via 7 contacts

Select one of your 80 programs (max) via the 8 switch buttons x 10 selectable pages

Multiple Zone control: 5 different programs can run simultaneously

Program selection via the NEXT and PREVIOUS buttons

General dimmer adjustment

Speed adjustment of the programs

Manual color selection of your customized colors via the 8 trigger buttons

Manual color selection of 100 standard colors via the + and – buttons

Master/Slave mode for up to 32 interfaces connected together

4Mb internal memory + SD card slot for memory extension

3-pin XLR connectors

Power supply for the use in standalone mode: 9V to 36V via DC connectors, 5V via USB connector (optional)

An optional external infra-red receiver can be connected to the unit (LD-512Kit-IR = IR receiver + 2 remote controllers)

For more information about the software: www.chromateq.com
